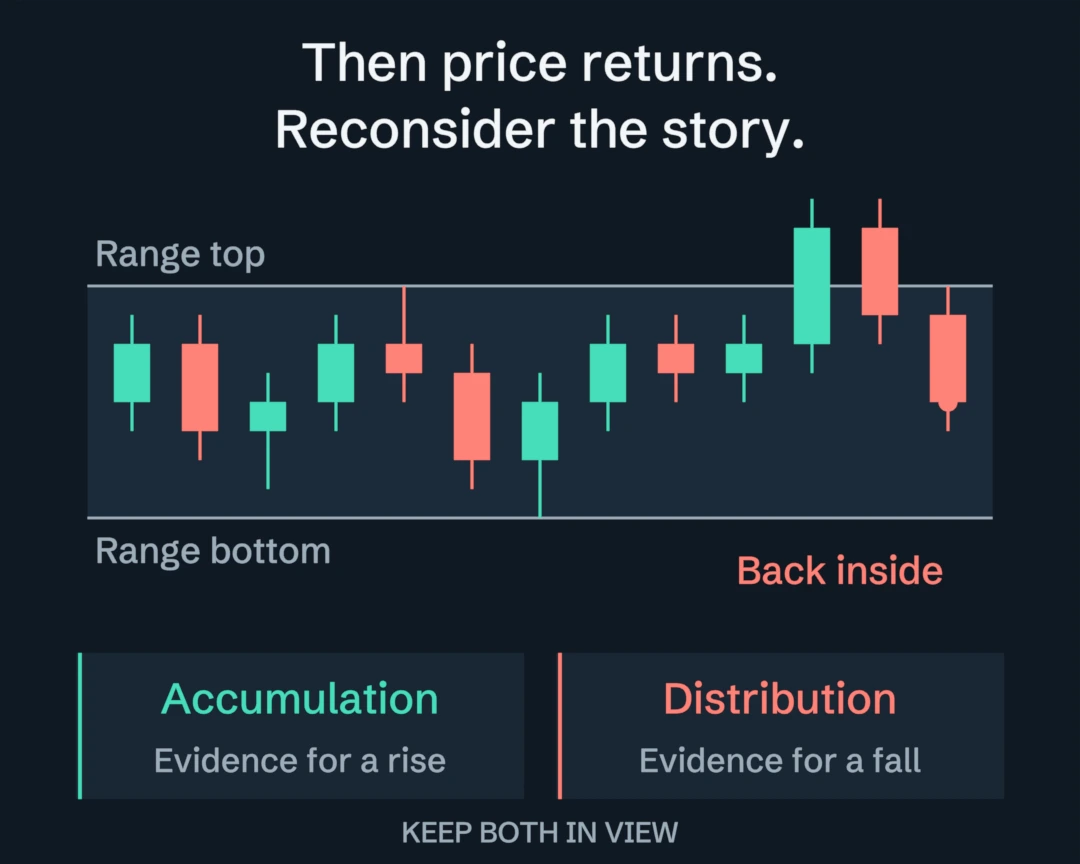

One range.
Which story holds up?

//@version=6
// Wyckoff Evidence Desk 1.0.0. Original heuristic interpretation, not a probability or profit claim.
indicator("Wyckoff Evidence Desk · Footprint", "WED FP", overlay = true, behind_chart = false, max_labels_count = 120, max_boxes_count = 4, max_lines_count = 20, max_bars_back = 2000)
const bool footprintBuild = true
int fpTicks = input.int(100, "Footprint row ticks", minval = 1, group = "00 · Footprint · Premium / Ultimate")
footprint fp = request.footprint(fpTicks)
float fpTotal = not na(fp) ? fp.total_volume() : na
float fpDelta = not na(fpTotal) and fpTotal > 0 ? fp.delta() / fpTotal : na
// Direction-classified lower-timeframe volume; not verified exchange aggressor flow.

// Causal, direction-normalized engine. The same code runs both hypotheses.
// All episode state changes occur only for committed frames. No future bars are read.
type WConfig
    int minB = 8
    int reclaimBars = 3
    int maxAge = 240
    float tolerance = 0.25
    float maxSweep = 1.5
    float minWidth = 2.5
    float trailAtr = 3.0
    bool allowBootstrap = true

type WBar
    int i = 0
    bool closed = true
    float o = na
    float h = na
    float l = na
    float c = na
    float atr = na
    float rv = na
    float vol = na
    bool volumeOk = false
    bool climax = false
    bool quiet = false
    float rangeLo = na
    float rangeHi = na
    float ph = na
    float pl = na
    float pivotVolume = na
    float pivotRv = na
    int pivotIndex = 0
    float spreadRatio = na
    bool contraction = false
    int context = 0
    float delta = na

type WEngine
    int dir = 1
    int phase = 0
    int stage = 0
    float lo = na
    float hi = na
    int born = na
    int climaxBar = na
    float climaxVolume = na
    int arBar = na
    int bStarted = na
    bool bootstrap = false
    int pending = 0
    int sweepBar = na
    float sweepExtreme = na
    float sweepRv = na
    int sweepKind = 0
    bool testPassed = false
    bool testObserved = false
    int strengthBar = na
    int breakout = na
    int outside = 0
    int invalidCloses = 0
    bool backedUp = false
    float trail = na
    float lastSwingHigh = na
    float pvSum = 0.0
    float vSum = 0.0
    float vwap = na
    float score = 0.0
    string event = ""
    string lastEvent = "Waiting"
    string why = "Waiting for exhaustion or a balanced range"
    int resetAt = -10000
    int lastTest = -10000
    int lastProcessed = -1

method tag(WEngine e, string name, string reason) =>
    e.event := name
    e.lastEvent := name
    e.why := reason

method clearEpisode(WEngine e, int i, string reason) =>
    e.phase := 0
    e.stage := 0
    e.lo := na
    e.hi := na
    e.born := na
    e.climaxBar := na
    e.climaxVolume := na
    e.arBar := na
    e.bStarted := na
    e.bootstrap := false
    e.pending := 0
    e.sweepBar := na
    e.sweepExtreme := na
    e.sweepRv := na
    e.sweepKind := 0
    e.testPassed := false
    e.testObserved := false
    e.strengthBar := na
    e.breakout := na
    e.outside := 0
    e.invalidCloses := 0
    e.backedUp := false
    e.trail := na
    e.lastSwingHigh := na
    e.pvSum := 0.0
    e.vSum := 0.0
    e.vwap := na
    e.score := 0.0
    e.resetAt := i
    e.lastTest := -10000
    e.tag("INVALID", reason)

method startEpisode(WEngine e, WBar b, bool bootstrap) =>
    e.born := b.i
    e.bootstrap := bootstrap
    e.climaxBar := b.i
    e.climaxVolume := b.volumeOk ? b.vol : na
    e.lo := bootstrap ? b.rangeLo : b.l
    e.hi := bootstrap ? b.rangeHi : na
    e.phase := bootstrap ? 2 : 1
    e.stage := bootstrap ? 3 : 1
    e.bStarted := bootstrap ? b.i : na
    e.tag(bootstrap ? "TR?" : e.dir == 1 ? "SC?" : "BC?", bootstrap ? "Balanced range bootstrap; Phase A was not observed" : "Exhaustion candidate; waiting for a confirmed automatic reaction")

method step(WEngine e, WBar b, WConfig cfg) =>
    if b.closed and b.i > e.lastProcessed
        e.lastProcessed := b.i
        e.event := ""
        float tol = b.atr * cfg.tolerance
        float width = e.hi - e.lo
        int enteredPhase = e.phase
        bool inside = not na(e.hi) and b.c >= e.lo and b.c <= e.hi
        float closeLocation = b.h > b.l ? (b.c - b.l) / (b.h - b.l) : 0.5
        bool pivotLowEffort = not na(b.pivotRv) and b.pivotRv < 1.15
        bool demand = b.c > b.o and closeLocation >= 0.65 and b.spreadRatio >= 1.05 and (not b.volumeOk or b.rv >= 1.1)
        bool expired = e.phase > 0 and e.phase < 5 and b.i - e.born > cfg.maxAge
        if e.phase > 0 and not na(e.hi)
            e.invalidCloses := b.c < e.lo - tol ? e.invalidCloses + 1 : 0
        bool invalid = e.phase > 0 and e.invalidCloses > cfg.reclaimBars
        bool deepAdverse = e.phase > 0 and not na(e.hi) and b.l < e.lo - cfg.maxSweep * b.atr
        bool bothEdges = e.phase > 0 and not na(e.hi) and b.l < e.lo - tol and b.h > e.hi + tol
        bool trendFailed = e.phase == 5 and (b.c < e.trail or b.c < e.hi - tol)
        if expired or invalid or deepAdverse
            e.clearEpisode(b.i, expired ? "Range expired before acceptance" : deepAdverse ? "Adverse excursion exceeded maximum structural depth" : "Sustained acceptance beyond the invalidation boundary")
        else if trendFailed
            e.clearEpisode(b.i, b.c < e.trail ? "Confirmed close crossed the one-way structural trail" : "Backup failed: close crossed the breakout boundary")
        else if bothEdges
            e.pending := 0
            e.testPassed := false
            e.testObserved := false
            if e.phase >= 3 and e.phase < 5
                e.phase := 2
                e.bStarted := b.i
                e.breakout := na
                e.outside := 0
            e.tag("AMBIGUOUS", "This bar crossed both range edges; OHLC cannot establish the sequence")
        else if e.phase == 0
            if b.i - e.resetAt > 3 and not na(b.atr) and b.atr > 0
                if b.climax
                    e.startEpisode(b, false)
                else if cfg.allowBootstrap and b.quiet and b.rangeHi - b.rangeLo >= cfg.minWidth * b.atr and b.c >= b.rangeLo and b.c <= b.rangeHi
                    e.startEpisode(b, true)
                else if b.volumeOk and b.rv >= 1.5 and closeLocation >= 0.65 and b.i - e.lastTest > 8
                    e.lastTest := b.i
                    e.tag(e.dir == 1 ? "PS?" : "PSY?", "Preliminary stopping activity; no range has been established")
        else if e.phase == 1
            if e.stage == 1
                // SC/BC is provisional until AR establishes the second boundary.
                if b.l < e.lo
                    e.lo := b.l
                    e.climaxBar := b.i
                    e.climaxVolume := b.volumeOk ? b.vol : na
                if not na(b.ph) and b.pivotIndex > e.climaxBar and b.ph - e.lo >= cfg.minWidth * b.atr
                    e.hi := b.ph
                    e.arBar := b.pivotIndex
                    e.stage := 2
                    e.tag("AR", "Confirmed swing establishes the other boundary; range is now frozen")
            else if e.stage == 2
                bool test = not na(b.pl) and b.pivotIndex > e.arBar and b.pl >= e.lo - tol and b.pl <= e.lo + width * 0.3 and inside
                bool comparableVolume = not na(b.pivotVolume) and b.pivotVolume > 0 and not na(e.climaxVolume) and e.climaxVolume > 0
                bool lessVolume = comparableVolume ? b.pivotVolume < e.climaxVolume : not b.volumeOk
                if test and lessVolume
                    e.phase := 2
                    e.stage := 3
                    e.bStarted := b.i
                    e.lastTest := b.i
                    e.tag("ST", b.volumeOk ? "Secondary test on lower volume; cause-building hypothesis begins" : "Price-only secondary test; volume unavailable")
        else if e.phase == 2 or e.phase == 3
            bool mature = b.i - e.bStarted >= cfg.minB
            if e.pending == 1
                e.sweepExtreme := math.min(e.sweepExtreme, b.l)
                e.sweepRv := b.volumeOk ? math.max(nz(e.sweepRv, b.rv), b.rv) : e.sweepRv
                bool tooDeep = e.lo - e.sweepExtreme > cfg.maxSweep * b.atr
                if b.i - e.sweepBar > cfg.reclaimBars or tooDeep
                    e.pending := 0
                    e.phase := 2
                    e.testPassed := false
                    e.tag("SWEEP FAILED", "Reclaim window expired or excursion exceeded the allowed depth")
                else if b.c >= e.lo and closeLocation >= 0.55
                    e.pending := 0
                    e.phase := 3
                    e.sweepKind := na(e.sweepRv) ? 0 : e.sweepRv >= 2 ? 1 : e.sweepRv >= 1 ? 2 : 3
                    e.testPassed := e.sweepKind == 3
                    e.tag(e.dir == 1 ? "SPRING" : "UTAD", b.c > e.hi ? "Recovered beyond the opposite edge; test and strength rules still apply" : e.testPassed ? "Low-volume reclaim confirmed; subsequent strength still required" : "Reclaim confirmed; waiting for a later lower-effort test")
            else if mature and b.l < e.lo - tol and b.c <= e.hi and e.lo - b.l <= cfg.maxSweep * b.atr
                e.pending := 1
                e.sweepBar := b.i
                e.sweepExtreme := b.l
                e.sweepRv := b.rv
                e.testPassed := false
                e.testObserved := false
                e.tag("SWEEP?", "Boundary breach observed; waiting for an actual close back inside")
                if inside and closeLocation >= 0.55
                    e.pending := 0
                    e.phase := 3
                    e.sweepKind := not b.volumeOk ? 0 : b.rv >= 2 ? 1 : b.rv >= 1 ? 2 : 3
                    e.testPassed := e.sweepKind == 3
                    e.tag(e.dir == 1 ? "SPRING" : "UTAD", e.testPassed ? "Same-bar low-volume reclaim confirmed; waiting for strength" : "Same-bar reclaim confirmed; later test required")
            else if e.phase == 3 and not e.testPassed
                bool higherTest = not na(b.pl) and b.pivotIndex > e.sweepBar and b.pl > e.sweepExtreme + tol and b.pl <= e.lo + width * 0.4 and inside
                bool dryTest = not na(b.pivotRv) and b.pivotRv < math.min(nz(e.sweepRv, 1), 1.15)
                bool priceOnlyTest = e.sweepKind == 0 and not b.volumeOk and na(b.pivotRv)
                if higherTest and (dryTest or priceOnlyTest)
                    e.testPassed := true
                    e.testObserved := true
                    e.lastTest := b.i
                    e.tag("TEST", priceOnlyTest ? "Structural test only; lower-effort volume evidence is unavailable" : "Confirmed higher-low / lower-high test on reduced relative volume")
            else if mature and demand and b.c > math.max(nz(e.lastSwingHigh, e.lo + width * 0.65), e.lo + width * 0.5) + tol and (e.phase == 2 or e.testPassed)
                e.phase := 4
                e.strengthBar := b.i
                e.tag(e.dir == 1 ? "SOS" : "SOW", enteredPhase == 2 ? "Directional dominance; no terminal sweep required" : "Directional dominance on expanded effort and result")
                if b.c > e.hi + tol
                    e.breakout := b.i
                    e.outside := 1
                    e.tag(e.dir == 1 ? "JAC" : "FTI", "First decisive close beyond the frozen range; acceptance is pending")
            else if e.phase == 2 and inside and b.i - e.lastTest > 5
                if not na(b.pl) and b.pivotIndex > e.bStarted and b.pl <= e.lo + width * 0.3 and b.pl >= e.lo - tol and pivotLowEffort
                    e.lastTest := b.i
                    e.tag("ST-B", "Range-edge test during cause building")
                else if b.h > e.hi + tol
                    e.lastTest := b.i
                    e.tag(e.dir == 1 ? "UTA" : "mSOW", "Opposite edge rejected back into the range; direction remains unresolved")
        else if e.phase == 4
            if na(e.breakout)
                if demand and b.c > e.hi + tol
                    e.breakout := b.i
                    e.outside := 1
                    e.tag(e.dir == 1 ? "JAC" : "FTI", "Breakout close observed; a second outside close is required")
                else if not na(b.pl) and b.pivotIndex > e.strengthBar and b.pl > nz(e.sweepExtreme, e.lo) + tol and inside and pivotLowEffort and b.i - e.lastTest > 5
                    e.lastTest := b.i
                    e.tag(e.dir == 1 ? "LPS" : "LPSY", "Confirmed pullback holds above structural origin on reduced effort")
            else
                e.outside := b.c > e.hi + tol ? e.outside + 1 : 0
                if e.outside >= 2
                    e.phase := 5
                    e.trail := math.max(e.lo, b.c - cfg.trailAtr * b.atr)
                    e.tag("ACCEPT", "Two consecutive closes accepted outside the range; awaiting backup")
                else if b.c < e.hi - tol or b.i - e.breakout > cfg.reclaimBars
                    e.breakout := na
                    e.outside := 0
                    e.phase := 2
                    e.bStarted := b.i
                    e.testPassed := false
                    e.tag("BREAKOUT FAILED", "Outside acceptance failed; cause-building hypothesis restarted")
        else if e.phase == 5
            if b.c < e.trail
                e.clearEpisode(b.i, "Confirmed close crossed the one-way structural trail")
            else if b.c < e.hi - tol
                e.clearEpisode(b.i, "Backup failed: price closed back through the breakout boundary")
            else
                e.trail := math.max(e.trail, b.c - cfg.trailAtr * b.atr)
                bool retest = b.i > e.breakout and b.l <= e.hi + tol and b.l >= e.hi - cfg.maxSweep * b.atr and b.c >= e.hi and b.c > b.o
                if retest and not e.backedUp and (not b.volumeOk or b.rv <= 1.3)
                    e.backedUp := true
                    e.tag("BU", b.volumeOk ? "Accepted breakout retested on controlled effort; one setup per episode" : "Price-only backup; volume confirmation unavailable")
        // AVWAP anchors at the observed episode start; missing volume is never invented.
        if e.phase > 0
            if b.volumeOk
                e.pvSum += (b.h + b.l + b.c) / 3 * b.vol
                e.vSum += b.vol
                e.vwap := e.pvSum / e.vSum
            if not na(b.ph) and b.pivotIndex >= e.born and b.ph < nz(e.hi, b.ph + 1)
                e.lastSwingHigh := b.ph
            float base = e.phase == 1 ? 12 : e.phase == 2 ? 25 : e.phase == 3 ? 40 : e.phase == 4 ? 55 : 65
            float support = (e.testPassed ? 8 : 0) + (b.contraction ? 5 : 0) + (not na(e.vwap) and b.c > e.vwap ? 5 : 0) + (b.context == 1 ? 7 : b.context == -1 ? -8 : 0) + (closeLocation >= 0.65 ? 5 : 0) + (not na(b.delta) and b.delta > 0.1 ? 5 : 0)
            e.score := math.max(0, math.min(100, base + support - (e.bootstrap ? 5 : 0) - (b.volumeOk ? 0 : 15) - (e.pending == 1 ? 8 : 0)))
    e.phase

const string G_ENGINE = "01 · Detection"
int swingBars = input.int(3, "Confirmed swing bars (latency)", minval = 2, maxval = 10, group = G_ENGINE)
int baseline = input.int(50, "Adaptive baseline", minval = 20, maxval = 200, group = G_ENGINE)
int rangeBars = input.int(30, "Balanced-range lookback", minval = 15, maxval = 100, group = G_ENGINE)
bool allowBootstrap = input.bool(true, "Allow balanced-range bootstrap", tooltip = "Recognizes continuation ranges without inventing historical SC/BC. Both directions may remain plausible.", group = G_ENGINE)
int minCause = input.int(8, "Minimum cause-building bars", minval = 3, maxval = 80, group = G_ENGINE)
int reclaimWindow = input.int(3, "Reclaim deadline (closed bars)", minval = 1, maxval = 5, group = G_ENGINE)
int maxAge = input.int(240, "Expire range after bars", minval = 40, maxval = 1500, group = G_ENGINE)
float tolerance = input.float(0.25, "Boundary tolerance / ATR", minval = 0.05, maxval = 1, step = 0.05, group = G_ENGINE)
float maxSweep = input.float(1.5, "Maximum sweep depth / ATR", minval = 0.5, maxval = 4, step = 0.1, group = G_ENGINE)
float minWidth = input.float(2.5, "Minimum range width / ATR", minval = 1, maxval = 8, step = 0.25, group = G_ENGINE)
float trailMultiple = input.float(3, "One-way trail / ATR", minval = 1, maxval = 8, step = 0.25, group = G_ENGINE)
const string G_CONTEXT = "02 · Evidence and setup gates"
bool useContext = input.bool(true, "Use confirmed higher-timeframe context", group = G_CONTEXT)
string contextInput = input.timeframe("", "Context timeframe (blank = automatic 4×)", group = G_CONTEXT)
bool requireVolume = input.bool(true, "Require volume for qualified backup", tooltip = "Price-only hypotheses remain visible. Missing/zero volume cannot qualify a setup when enabled.", group = G_CONTEXT)
float minEvidence = input.float(65, "Minimum backup evidence score", minval = 40, maxval = 95, group = G_CONTEXT)
float leadNeeded = input.float(10, "Minimum lead over opposing hypothesis", minval = 0, maxval = 40, group = G_CONTEXT)
bool enableJson = input.bool(false, "Emit JSON event alerts", group = G_CONTEXT)

float atr = ta.atr(14)
float volMedian = ta.median(volume, baseline)[1]
bool hasVolume = not na(volume) and volume > 0 and not na(volMedian) and volMedian > 0
float rvol = hasVolume ? volume / volMedian : na
float spread = high - low
float spreadMedian = ta.median(spread, baseline)[1]
float spreadRatio = spreadMedian > 0 ? spread / spreadMedian : 0
float volumeExtreme = ta.percentile_nearest_rank(volume, baseline, 90)[1]
float spreadExtreme = ta.percentile_nearest_rank(spread, baseline, 90)[1]
float ph = ta.pivothigh(high, swingBars, swingBars)
float pl = ta.pivotlow(low, swingBars, swingBars)
float recentHi = ta.highest(high, rangeBars)[1]
float recentLo = ta.lowest(low, rangeBars)[1]
float pathLength = math.sum(math.abs(ta.change(close)), rangeBars)[1]
float efficiency = pathLength > 0 ? math.abs(close[1] - close[rangeBars + 1]) / pathLength : 1
float fastVolume = ta.sma(volume, 8)
float slowVolume = ta.sma(volume, 30)
bool contraction = hasVolume and fastVolume < slowVolume * 0.9
float trend = ta.ema(close, 34)
bool priorDown = close[1] < trend[1] and trend[1] < trend[6]
bool priorUp = close[1] > trend[1] and trend[1] > trend[6]
bool quiet = efficiency < 0.3 and recentHi - recentLo <= atr * 10
bool extreme = hasVolume and volume >= volumeExtreme and rvol >= 1.8 and spread >= spreadExtreme and spreadRatio >= 1.3
float closeLocation = spread > 0 ? (close - low) / spread : 0.5
bool warm = bar_index > math.max(baseline, rangeBars) + 35 and not na(atr)
string contextTf = contextInput == "" ? timeframe.from_seconds(int(timeframe.in_seconds() * 4)) : contextInput
if barstate.isfirst and not chart.is_standard
    runtime.error("Use standard time-based candles. Synthetic prices are unsuitable for this analysis.")
if barstate.isfirst and useContext and timeframe.in_seconds(contextTf) <= timeframe.in_seconds()
    runtime.error("Context timeframe must be higher than the chart timeframe.")
[htfClose, htfMean, htfOldMean] = request.security(syminfo.tickerid, contextTf, [close[1], ta.ema(close, 34)[1], ta.ema(close, 34)[2]], lookahead = barmerge.lookahead_on)
int htfBias = not useContext ? 0 : htfClose > htfMean and htfMean > htfOldMean ? 1 : htfClose < htfMean and htfMean < htfOldMean ? -1 : 0

f_frame(int direction) =>
    WBar b = WBar.new()
    b.i := bar_index
    b.closed := barstate.isconfirmed and warm
    b.o := direction * open
    b.h := direction == 1 ? high : -low
    b.l := direction == 1 ? low : -high
    b.c := direction * close
    b.atr := atr
    b.rv := rvol
    b.vol := volume
    b.volumeOk := hasVolume
    b.climax := extreme and (direction == 1 ? priorDown and low < recentLo and closeLocation >= 0.4 : priorUp and high > recentHi and closeLocation <= 0.6)
    b.quiet := quiet
    b.rangeLo := direction == 1 ? recentLo : -recentHi
    b.rangeHi := direction == 1 ? recentHi : -recentLo
    b.ph := direction == 1 ? ph : -pl
    b.pl := direction == 1 ? pl : -ph
    b.pivotVolume := volume[swingBars]
    b.pivotRv := rvol[swingBars]
    b.pivotIndex := bar_index - swingBars
    b.spreadRatio := spreadRatio
    b.contraction := contraction
    b.context := direction * htfBias
    b.delta := direction * fpDelta
    b

var WEngine bull = WEngine.new(1)
var WEngine bear = WEngine.new(-1)
WConfig config = WConfig.new(minCause, reclaimWindow, maxAge, tolerance, maxSweep, minWidth, trailMultiple, allowBootstrap)
bull.step(f_frame(1), config)
bear.step(f_frame(-1), config)
bool eligibleLong = barstate.isconfirmed and warm and bull.event == "BU" and bull.score >= minEvidence and bull.score - bear.score >= leadNeeded and (not requireVolume or hasVolume) and (not useContext or htfBias >= 0)
bool eligibleShort = barstate.isconfirmed and warm and bear.event == "BU" and bear.score >= minEvidence and bear.score - bull.score >= leadNeeded and (not requireVolume or hasVolume) and (not useContext or htfBias <= 0)
alertcondition(eligibleLong, "Qualified bullish backup", "Wyckoff Evidence Desk: qualified bullish backup on {{ticker}} {{interval}}. Evidence is not a probability.")
alertcondition(eligibleShort, "Qualified bearish backup", "Wyckoff Evidence Desk: qualified bearish backup on {{ticker}} {{interval}}. Evidence is not a probability.")
alertcondition(barstate.isconfirmed and (bull.event == "SPRING" or bear.event == "UTAD"), "Confirmed reclaim", "Wyckoff boundary reclaim confirmed on {{ticker}} {{interval}}; inspect test and acceptance status.")
if enableJson and barstate.isconfirmed
    for side in array.from(bull, bear)
        if side.event != ""
            string payload = '{"schema":"wed.v1","symbol":"' + syminfo.tickerid + '","timeframe":"' + timeframe.period + '","barTime":' + str.tostring(time) + ',"side":' + str.tostring(side.dir) + ',"phase":' + str.tostring(side.phase) + ',"event":"' + side.event + '","evidence":' + str.tostring(side.score, "#.0") + ',"volumeAvailable":' + str.tostring(hasVolume) + '}'
            alert(payload, alert.freq_all)
// Numeric exports for Data Window and Pine Screener. Scores are uncalibrated rules.
plot(bull.phase, "Accumulation phase 0-5", display = display.data_window)
plot(bear.phase, "Distribution phase 0-5", display = display.data_window)
plot(bull.score, "Accumulation evidence 0-100", display = display.data_window)
plot(bear.score, "Distribution evidence 0-100", display = display.data_window)
plot(eligibleLong ? 1 : eligibleShort ? -1 : 0, "Qualified backup direction", display = display.data_window)

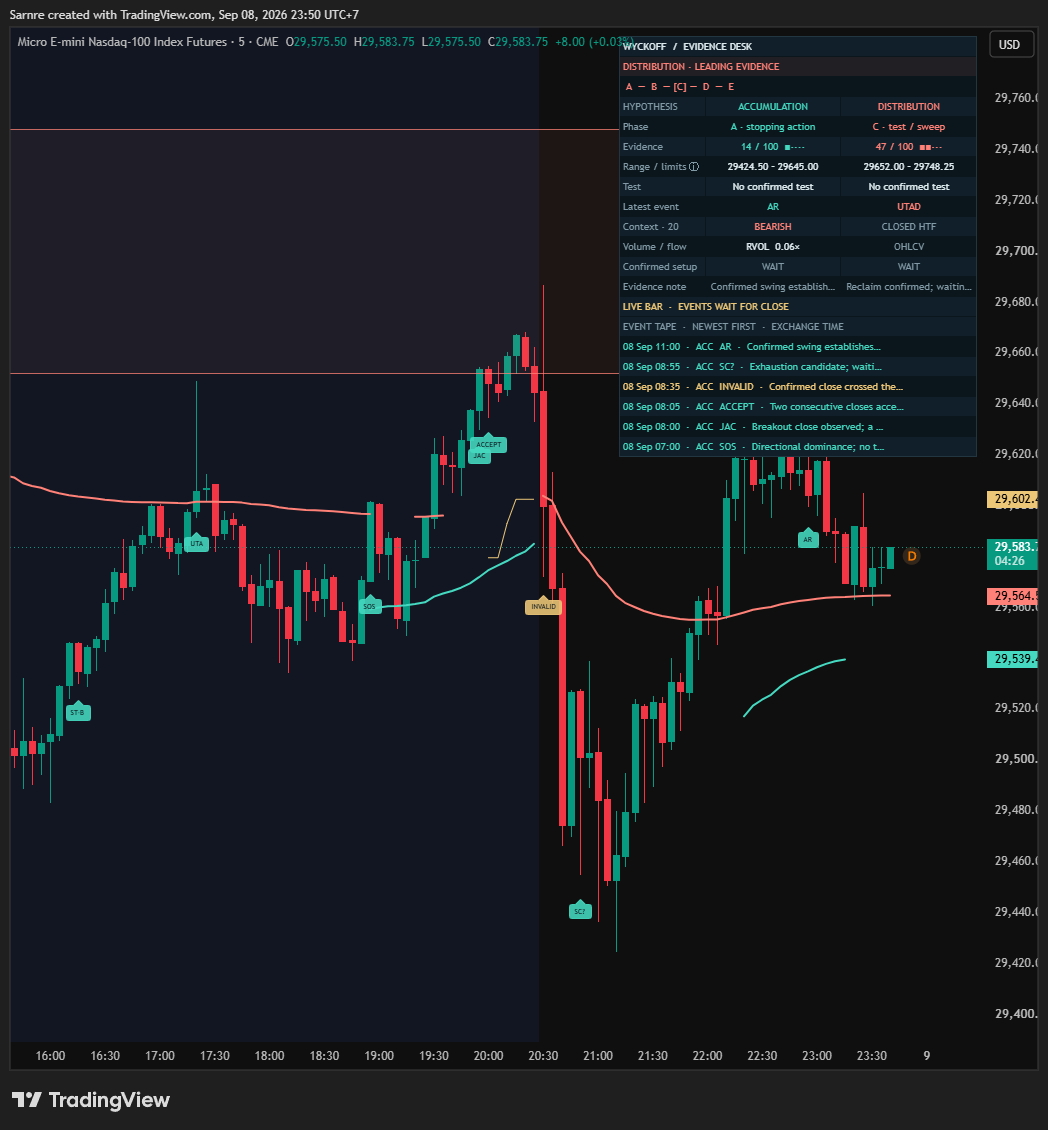

// ── Evidence desk · chart presentation ────────────────────────────────────────
string visualGroup = "05 · Evidence desk"
bool showDashboard = input.bool(true, "Evidence dashboard", group = visualGroup)
bool showTape = input.bool(true, "Last six confirmed events", group = visualGroup)
bool showLabels = input.bool(true, "Confirmed event labels", group = visualGroup)
bool showRange = input.bool(true, "Active hypothesis ranges", group = visualGroup)
bool showVwap = input.bool(true, "Event-anchored VWAP", group = visualGroup)
bool showTrail = input.bool(true, "Phase E structural trail", group = visualGroup)
bool showBars = input.bool(false, "Color bars from phase C onward", group = visualGroup)
int maxEventLabels = input.int(60, "Retained event labels", minval = 10, maxval = 100, group = visualGroup)
string dashboardPosition = input.string("Top right", "Dashboard position", options = ["Top right", "Bottom right", "Top left", "Bottom left"], group = visualGroup)

color vdInk = #0B151C
color vdPanel = #101F29
color vdGrid = #223642
color vdText = #DCE9ED
color vdMuted = #819AA5
color vdBull = #44D9C0
color vdBear = #FF8177
color vdGold = #EDC778

f_vdPhase(int phase) =>
    switch phase
        1 => "A · stopping action"
        2 => "B · range building"
        3 => "C · test / sweep"
        4 => "D · directional proof"
        5 => "E · follow-through"
        => "SCAN · no range"

f_vdRibbon(int phase) =>
    phase == 0 ? "SCAN   ·   WAIT FOR STRUCTURE" : (phase == 1 ? "[A]" : " A ") + " — " + (phase == 2 ? "[B]" : " B ") + " — " + (phase == 3 ? "[C]" : " C ") + " — " + (phase == 4 ? "[D]" : " D ") + " — " + (phase == 5 ? "[E]" : " E ")

f_vdFailed(string eventName) =>
    str.contains(str.upper(eventName), "FAIL") or str.contains(str.upper(eventName), "INVALID") or str.contains(str.upper(eventName), "EXPIRE")

f_vdPrice(float value) =>
    na(value) ? "—" : str.tostring(value, format.mintick)

f_vdScore(float value) =>
    float bounded = math.max(0.0, math.min(100.0, nz(value)))
    int blocks = int(math.round(bounded / 20.0))
    string meter = ""
    for block = 1 to 5
        meter += block <= blocks ? "■" : "·"
    str.tostring(bounded, "0") + " / 100  " + meter

f_vdBrief(string value, int limit) =>
    str.length(value) > limit ? str.substring(value, 0, limit - 1) + "…" : value

f_vdTest(WEngine engine) =>
    engine.phase == 0 ? "Awaiting range" : engine.pending == 1 ? "Reclaim pending" : engine.testPassed and engine.testObserved ? "Test confirmed" : engine.testPassed ? "Type 3 · test waived" : engine.phase >= 4 ? "Direct strength path" : "No confirmed test"

f_vdBoundaryTip(WEngine engine, bool isBull) =>
    float direction = isBull ? 1.0 : -1.0
    string side = isBull ? "below " : "above "
    string detail = "No active range."
    if engine.phase > 0 and na(engine.hi)
        detail := "Phase A candidate: awaiting the automatic reaction to establish both range edges. Observed origin: " + f_vdPrice(direction * engine.lo)
    else if engine.phase > 0
        detail := "Sustained close invalidation: " + side + f_vdPrice(direction * (engine.lo - atr * tolerance)) + ". More than " + str.tostring(reclaimWindow) + " consecutive closes are required.\nMaximum adverse wick boundary: " + f_vdPrice(direction * (engine.lo - atr * maxSweep)) + ". Crossing it invalidates on the confirmed bar."
        if engine.phase == 5
            detail += "\nPhase E structural trail: " + f_vdPrice(direction * engine.trail) + ".\nBackup failure close boundary: " + side + f_vdPrice(direction * (engine.hi - atr * tolerance)) + ".\nTrail is structural context, not a broker stop order."
    detail

f_vdCell(table panel, int column, int row, string value, color foreground, color background, string tooltipText = "") =>
    table.cell(panel, column, row, value, text_color = foreground, bgcolor = background, text_size = size.small, text_halign = column == 0 ? text.align_left : text.align_center, tooltip = tooltipText)

f_vdTape(array<string> tape, array<color> colors, bool isBull, string eventName, string reason) =>
    string stamp = str.format_time(na(time_close) ? time : time_close, "dd MMM HH:mm", syminfo.timezone)
    array.unshift(tape, stamp + "  ·  " + (isBull ? "ACC" : "DIST") + "  " + eventName + "  ·  " + f_vdBrief(reason, 28))
    array.unshift(colors, f_vdFailed(eventName) ? vdGold : isBull ? vdBull : vdBear)
    if array.size(tape) > 6
        array.pop(tape)
        array.pop(colors)

f_vdLabel(bool isBull, WEngine engine) =>
    color tone = f_vdFailed(engine.event) ? vdGold : isBull ? vdBull : vdBear
    float y = isBull ? low - nz(atr, high - low) * 0.24 : high + nz(atr, high - low) * 0.24
    string tip = (isBull ? "ACCUMULATION" : "DISTRIBUTION") + " · " + engine.event + "\nConfirmed on this bar close.\n" + f_vdPhase(engine.phase) + "\nEvidence: " + str.tostring(engine.score, "0") + " / 100 (heuristic, not probability)\n" + engine.why
    label.new(bar_index, y, engine.event, xloc = xloc.bar_index, yloc = yloc.price, style = isBull ? label.style_label_up : label.style_label_down, color = color.new(tone, 12), textcolor = vdInk, size = size.tiny, tooltip = tip)

bool vdBullActive = bull.phase > 0
bool vdBearActive = bear.phase > 0
bool vdBullRange = vdBullActive and not na(bull.lo) and not na(bull.hi)
bool vdBearRange = vdBearActive and not na(bear.lo) and not na(bear.hi)
bool vdContested = vdBullActive and vdBearActive and math.abs(bull.score - bear.score) <= 10.0
bool vdSelectBull = vdBullActive and (not vdBearActive or bull.score >= bear.score)
bool vdSelectBear = vdBearActive and not vdSelectBull
bool vdShowBull = vdBullActive and (vdSelectBull or vdContested)
bool vdShowBear = vdBearActive and (vdSelectBear or vdContested)
bool vdDrawBull = vdBullRange and vdShowBull
bool vdDrawBear = vdBearRange and vdShowBear
int vdPhase = vdSelectBull ? bull.phase : vdSelectBear ? bear.phase : 0
color vdAccent = vdContested ? vdGold : vdSelectBull ? vdBull : vdSelectBear ? vdBear : vdMuted
bool vdReset = not vdBullActive and not vdBearActive and (f_vdFailed(bull.lastEvent) or f_vdFailed(bear.lastEvent))
string vdMode = vdContested ? "CONTESTED · BOTH HYPOTHESES ACTIVE" : vdSelectBull ? "ACCUMULATION · LEADING EVIDENCE" : vdSelectBear ? "DISTRIBUTION · LEADING EVIDENCE" : vdReset ? "RESET → SCAN · AWAIT NEW STRUCTURE" : "SCANNING · AWAIT STOPPING ACTION"

// Reuse two boxes. Their left edge is the confirmation bar that started the range.
var box vdBullBox = na
var box vdBearBox = na
if showRange and vdDrawBull
    int left = math.max(nz(bull.born, bar_index), bar_index - 9999)
    if na(vdBullBox)
        vdBullBox := box.new(left, bull.hi, bar_index + 1, bull.lo, border_color = color.new(vdBull, 26), border_width = 1, bgcolor = color.new(vdBull, 94), text = "", text_color = color.new(vdBull, 12), text_size = size.tiny, text_halign = text.align_left, text_valign = text.align_top)
    box.set_lefttop(vdBullBox, left, bull.hi)
    box.set_rightbottom(vdBullBox, bar_index + 1, bull.lo)
    box.set_border_style(vdBullBox, vdContested ? line.style_dashed : line.style_solid)
    box.set_text(vdBullBox, "  ACC  ·  " + f_vdPhase(bull.phase) + "  ·  " + str.tostring(bull.score, "0") + "/100")
else if not na(vdBullBox)
    box.delete(vdBullBox)
    vdBullBox := na

if showRange and vdDrawBear
    int left = math.max(nz(bear.born, bar_index), bar_index - 9999)
    if na(vdBearBox)
        vdBearBox := box.new(left, -bear.lo, bar_index + 1, -bear.hi, border_color = color.new(vdBear, 26), border_width = 1, bgcolor = color.new(vdBear, 94), text = "", text_color = color.new(vdBear, 12), text_size = size.tiny, text_halign = text.align_left, text_valign = text.align_bottom)
    box.set_lefttop(vdBearBox, left, -bear.lo)
    box.set_rightbottom(vdBearBox, bar_index + 1, -bear.hi)
    box.set_border_style(vdBearBox, vdContested ? line.style_dashed : line.style_solid)
    box.set_text(vdBearBox, "  DIST  ·  " + f_vdPhase(bear.phase) + "  ·  " + str.tostring(bear.score, "0") + "/100")
else if not na(vdBearBox)
    box.delete(vdBearBox)
    vdBearBox := na

plot(showVwap and vdShowBull ? bull.vwap : na, "Accumulation event AVWAP", color = vdBull, linewidth = 2, style = plot.style_linebr)
plot(showVwap and vdShowBear ? -bear.vwap : na, "Distribution event AVWAP", color = vdBear, linewidth = 2, style = plot.style_linebr)
float vdSelectedTrail = not vdContested and vdPhase == 5 ? vdSelectBull ? bull.trail : -bear.trail : na
plot(showTrail ? vdSelectedTrail : na, "Leading Phase E structural trail", color = vdGold, linewidth = 1, style = plot.style_linebr)
barcolor(showBars and vdPhase >= 3 ? color.new(vdAccent, 24) : na, title = "Evidence phase tint")
plotshape(eligibleLong and barstate.isconfirmed, title = "Confirmed long setup", style = shape.diamond, location = location.belowbar, color = vdBull, size = size.tiny)
plotshape(eligibleShort and barstate.isconfirmed, title = "Confirmed short setup", style = shape.diamond, location = location.abovebar, color = vdBear, size = size.tiny)

var array<label> vdLabels = array.new<label>()
var array<string> vdTape = array.new<string>()
var array<color> vdTapeColors = array.new<color>()
if barstate.isconfirmed
    if bull.event != ""
        f_vdTape(vdTape, vdTapeColors, true, bull.event, bull.why)
        if showLabels
            array.push(vdLabels, f_vdLabel(true, bull))
    if bear.event != ""
        f_vdTape(vdTape, vdTapeColors, false, bear.event, bear.why)
        if showLabels
            array.push(vdLabels, f_vdLabel(false, bear))
    while array.size(vdLabels) > maxEventLabels
        label.delete(array.shift(vdLabels))

string vdPosition = switch dashboardPosition
    "Bottom right" => position.bottom_right
    "Top left" => position.top_left
    "Bottom left" => position.bottom_left
    => position.top_right
var table vdDesk = table.new(vdPosition, 3, 21, bgcolor = vdInk, frame_color = vdGrid, frame_width = 1, border_color = vdInk, border_width = 1)
if barstate.isfirst
    table.merge_cells(vdDesk, 0, 0, 2, 0)
    table.merge_cells(vdDesk, 0, 1, 2, 1)
    table.merge_cells(vdDesk, 0, 2, 2, 2)
    table.merge_cells(vdDesk, 0, 13, 2, 13)
    table.merge_cells(vdDesk, 0, 14, 2, 14)
    for row = 15 to 20
        table.merge_cells(vdDesk, 0, row, 2, row)

if barstate.islast or barstate.islastconfirmedhistory
    if showDashboard
        f_vdCell(vdDesk, 0, 0, "WYCKOFF  /  EVIDENCE DESK", vdText, vdPanel, "Two independent, sequential hypotheses. Evidence scores are rule-based support, not calibrated probabilities.")
        f_vdCell(vdDesk, 0, 1, vdMode, vdAccent, color.new(vdAccent, 91))
        f_vdCell(vdDesk, 0, 2, vdContested ? "TWO ACTIVE PATHS · NO SINGLE PHASE RIBBON" : f_vdRibbon(vdPhase), vdAccent, vdInk)
        f_vdCell(vdDesk, 0, 3, "HYPOTHESIS", vdMuted, vdPanel)
        f_vdCell(vdDesk, 1, 3, "ACCUMULATION", vdBull, vdPanel)
        f_vdCell(vdDesk, 2, 3, "DISTRIBUTION", vdBear, vdPanel)
        f_vdCell(vdDesk, 0, 4, "Phase", vdMuted, vdInk)
        f_vdCell(vdDesk, 1, 4, f_vdPhase(bull.phase), vdBullActive ? vdBull : vdMuted, vdInk)
        f_vdCell(vdDesk, 2, 4, f_vdPhase(bear.phase), vdBearActive ? vdBear : vdMuted, vdInk)
        f_vdCell(vdDesk, 0, 5, "Evidence", vdMuted, vdPanel, "Heuristic support from the configured rules; 80/100 does not mean an 80% chance of success.")
        f_vdCell(vdDesk, 1, 5, f_vdScore(bull.score), vdBull, vdPanel)
        f_vdCell(vdDesk, 2, 5, f_vdScore(bear.score), vdBear, vdPanel)
        f_vdCell(vdDesk, 0, 6, "Range / limits ⓘ", vdMuted, vdInk, "Hover either hypothesis for its invalidation boundaries and, in Phase E, its structural trail. Live ATR-based boundaries can move until bar close.")
        f_vdCell(vdDesk, 1, 6, vdBullRange ? f_vdPrice(bull.lo) + " – " + f_vdPrice(bull.hi) : vdBullActive ? "Awaiting AR" : "—", vdText, vdInk, f_vdBoundaryTip(bull, true))
        f_vdCell(vdDesk, 2, 6, vdBearRange ? f_vdPrice(-bear.hi) + " – " + f_vdPrice(-bear.lo) : vdBearActive ? "Awaiting AR" : "—", vdText, vdInk, f_vdBoundaryTip(bear, false))
        f_vdCell(vdDesk, 0, 7, "Test", vdMuted, vdPanel)
        f_vdCell(vdDesk, 1, 7, f_vdTest(bull), bull.pending == 1 ? vdGold : vdText, vdPanel)
        f_vdCell(vdDesk, 2, 7, f_vdTest(bear), bear.pending == 1 ? vdGold : vdText, vdPanel)
        f_vdCell(vdDesk, 0, 8, "Latest event", vdMuted, vdInk)
        f_vdCell(vdDesk, 1, 8, bull.lastEvent == "" ? "—" : bull.lastEvent, f_vdFailed(bull.lastEvent) ? vdGold : vdBull, vdInk)
        f_vdCell(vdDesk, 2, 8, bear.lastEvent == "" ? "—" : bear.lastEvent, f_vdFailed(bear.lastEvent) ? vdGold : vdBear, vdInk)
        string contextName = not useContext ? "OFF" : htfBias == 1 ? "BULLISH" : htfBias == -1 ? "BEARISH" : "NEUTRAL"
        f_vdCell(vdDesk, 0, 9, "Context · " + contextTf, vdMuted, vdPanel, "Context is read from confirmed higher-timeframe data.")
        f_vdCell(vdDesk, 1, 9, contextName, not useContext ? vdMuted : htfBias == 1 ? vdBull : htfBias == -1 ? vdBear : vdGold, vdPanel)
        f_vdCell(vdDesk, 2, 9, useContext ? "CLOSED HTF" : "FILTER OFF", vdMuted, vdPanel)
        f_vdCell(vdDesk, 0, 10, "Volume / flow", vdMuted, vdInk)
        f_vdCell(vdDesk, 1, 10, hasVolume ? "RVOL  " + str.tostring(rvol, "0.00") + "×" : "VOLUME UNAVAILABLE", hasVolume ? vdText : vdGold, vdInk)
        f_vdCell(vdDesk, 2, 10, footprintBuild ? na(fpDelta) ? "FOOTPRINT N/A" : "Δ VOL  " + (fpDelta > 0 ? "+" : "") + str.tostring(fpDelta * 100.0, "0.0") + "%" : "OHLCV", footprintBuild and na(fpDelta) ? vdGold : vdMuted, vdInk, "Footprint delta divided by total classified volume. +25.0% means a +0.25 ratio, not 25 contracts or a probability.")
        f_vdCell(vdDesk, 0, 11, "Confirmed setup", vdMuted, vdPanel, "This row is true only on a confirmed eligible setup event. It is not a standing instruction or a profitability estimate.")
        f_vdCell(vdDesk, 1, 11, eligibleLong and barstate.isconfirmed ? "LONG · NEW EVENT" : "WAIT", eligibleLong and barstate.isconfirmed ? vdBull : vdMuted, vdPanel)
        f_vdCell(vdDesk, 2, 11, eligibleShort and barstate.isconfirmed ? "SHORT · NEW EVENT" : "WAIT", eligibleShort and barstate.isconfirmed ? vdBear : vdMuted, vdPanel)
        f_vdCell(vdDesk, 0, 12, "Evidence note", vdMuted, vdInk)
        f_vdCell(vdDesk, 1, 12, f_vdBrief(bull.why, 26), vdMuted, vdInk, bull.why)
        f_vdCell(vdDesk, 2, 12, f_vdBrief(bear.why, 26), vdMuted, vdInk, bear.why)
        f_vdCell(vdDesk, 0, 13, barstate.isconfirmed ? "BAR CLOSED  ·  SCORE ≠ PROBABILITY" : "LIVE BAR  ·  EVENTS WAIT FOR CLOSE", barstate.isconfirmed ? vdMuted : vdGold, vdPanel)
        f_vdCell(vdDesk, 0, 14, showTape ? "EVENT TAPE  ·  NEWEST FIRST  ·  EXCHANGE TIME" : "", vdMuted, showTape ? vdPanel : color.new(vdInk, 100))
        for index = 0 to 5
            bool hasEntry = showTape and index < array.size(vdTape)
            string entry = hasEntry ? array.get(vdTape, index) : showTape and index == 0 ? "No confirmed events in loaded history." : ""
            color entryColor = hasEntry ? array.get(vdTapeColors, index) : vdMuted
            f_vdCell(vdDesk, 0, 15 + index, entry, entryColor, showTape ? index % 2 == 0 ? vdInk : vdPanel : color.new(vdInk, 100))
    else
        table.clear(vdDesk, 0, 0, 2, 20)

//@version=6
// Wyckoff Evidence Desk 1.0.0. Original heuristic interpretation, not a probability or profit claim.
strategy("Wyckoff Evidence Desk · Validation Lab", "WED Lab", overlay = true, behind_chart = false, max_labels_count = 120, max_boxes_count = 4, max_lines_count = 20, max_bars_back = 2000, initial_capital = 100000, pyramiding = 0, default_qty_type = strategy.fixed, default_qty_value = 1, commission_type = strategy.commission.percent, commission_value = 0.05, slippage = 2, process_orders_on_close = false, calc_on_every_tick = false, calc_on_order_fills = false, calc_on_every_history_tick = false, margin_long = 100, margin_short = 100)
const bool footprintBuild = false
float fpDelta = na

// Causal, direction-normalized engine. The same code runs both hypotheses.
// All episode state changes occur only for committed frames. No future bars are read.
type WConfig
    int minB = 8
    int reclaimBars = 3
    int maxAge = 240
    float tolerance = 0.25
    float maxSweep = 1.5
    float minWidth = 2.5
    float trailAtr = 3.0
    bool allowBootstrap = true

type WBar
    int i = 0
    bool closed = true
    float o = na
    float h = na
    float l = na
    float c = na
    float atr = na
    float rv = na
    float vol = na
    bool volumeOk = false
    bool climax = false
    bool quiet = false
    float rangeLo = na
    float rangeHi = na
    float ph = na
    float pl = na
    float pivotVolume = na
    float pivotRv = na
    int pivotIndex = 0
    float spreadRatio = na
    bool contraction = false
    int context = 0
    float delta = na

type WEngine
    int dir = 1
    int phase = 0
    int stage = 0
    float lo = na
    float hi = na
    int born = na
    int climaxBar = na
    float climaxVolume = na
    int arBar = na
    int bStarted = na
    bool bootstrap = false
    int pending = 0
    int sweepBar = na
    float sweepExtreme = na
    float sweepRv = na
    int sweepKind = 0
    bool testPassed = false
    bool testObserved = false
    int strengthBar = na
    int breakout = na
    int outside = 0
    int invalidCloses = 0
    bool backedUp = false
    float trail = na
    float lastSwingHigh = na
    float pvSum = 0.0
    float vSum = 0.0
    float vwap = na
    float score = 0.0
    string event = ""
    string lastEvent = "Waiting"
    string why = "Waiting for exhaustion or a balanced range"
    int resetAt = -10000
    int lastTest = -10000
    int lastProcessed = -1

method tag(WEngine e, string name, string reason) =>
    e.event := name
    e.lastEvent := name
    e.why := reason

method clearEpisode(WEngine e, int i, string reason) =>
    e.phase := 0
    e.stage := 0
    e.lo := na
    e.hi := na
    e.born := na
    e.climaxBar := na
    e.climaxVolume := na
    e.arBar := na
    e.bStarted := na
    e.bootstrap := false
    e.pending := 0
    e.sweepBar := na
    e.sweepExtreme := na
    e.sweepRv := na
    e.sweepKind := 0
    e.testPassed := false
    e.testObserved := false
    e.strengthBar := na
    e.breakout := na
    e.outside := 0
    e.invalidCloses := 0
    e.backedUp := false
    e.trail := na
    e.lastSwingHigh := na
    e.pvSum := 0.0
    e.vSum := 0.0
    e.vwap := na
    e.score := 0.0
    e.resetAt := i
    e.lastTest := -10000
    e.tag("INVALID", reason)

method startEpisode(WEngine e, WBar b, bool bootstrap) =>
    e.born := b.i
    e.bootstrap := bootstrap
    e.climaxBar := b.i
    e.climaxVolume := b.volumeOk ? b.vol : na
    e.lo := bootstrap ? b.rangeLo : b.l
    e.hi := bootstrap ? b.rangeHi : na
    e.phase := bootstrap ? 2 : 1
    e.stage := bootstrap ? 3 : 1
    e.bStarted := bootstrap ? b.i : na
    e.tag(bootstrap ? "TR?" : e.dir == 1 ? "SC?" : "BC?", bootstrap ? "Balanced range bootstrap; Phase A was not observed" : "Exhaustion candidate; waiting for a confirmed automatic reaction")

method step(WEngine e, WBar b, WConfig cfg) =>
    if b.closed and b.i > e.lastProcessed
        e.lastProcessed := b.i
        e.event := ""
        float tol = b.atr * cfg.tolerance
        float width = e.hi - e.lo
        int enteredPhase = e.phase
        bool inside = not na(e.hi) and b.c >= e.lo and b.c <= e.hi
        float closeLocation = b.h > b.l ? (b.c - b.l) / (b.h - b.l) : 0.5
        bool pivotLowEffort = not na(b.pivotRv) and b.pivotRv < 1.15
        bool demand = b.c > b.o and closeLocation >= 0.65 and b.spreadRatio >= 1.05 and (not b.volumeOk or b.rv >= 1.1)
        bool expired = e.phase > 0 and e.phase < 5 and b.i - e.born > cfg.maxAge
        if e.phase > 0 and not na(e.hi)
            e.invalidCloses := b.c < e.lo - tol ? e.invalidCloses + 1 : 0
        bool invalid = e.phase > 0 and e.invalidCloses > cfg.reclaimBars
        bool deepAdverse = e.phase > 0 and not na(e.hi) and b.l < e.lo - cfg.maxSweep * b.atr
        bool bothEdges = e.phase > 0 and not na(e.hi) and b.l < e.lo - tol and b.h > e.hi + tol
        bool trendFailed = e.phase == 5 and (b.c < e.trail or b.c < e.hi - tol)
        if expired or invalid or deepAdverse
            e.clearEpisode(b.i, expired ? "Range expired before acceptance" : deepAdverse ? "Adverse excursion exceeded maximum structural depth" : "Sustained acceptance beyond the invalidation boundary")
        else if trendFailed
            e.clearEpisode(b.i, b.c < e.trail ? "Confirmed close crossed the one-way structural trail" : "Backup failed: close crossed the breakout boundary")
        else if bothEdges
            e.pending := 0
            e.testPassed := false
            e.testObserved := false
            if e.phase >= 3 and e.phase < 5
                e.phase := 2
                e.bStarted := b.i
                e.breakout := na
                e.outside := 0
            e.tag("AMBIGUOUS", "This bar crossed both range edges; OHLC cannot establish the sequence")
        else if e.phase == 0
            if b.i - e.resetAt > 3 and not na(b.atr) and b.atr > 0
                if b.climax
                    e.startEpisode(b, false)
                else if cfg.allowBootstrap and b.quiet and b.rangeHi - b.rangeLo >= cfg.minWidth * b.atr and b.c >= b.rangeLo and b.c <= b.rangeHi
                    e.startEpisode(b, true)
                else if b.volumeOk and b.rv >= 1.5 and closeLocation >= 0.65 and b.i - e.lastTest > 8
                    e.lastTest := b.i
                    e.tag(e.dir == 1 ? "PS?" : "PSY?", "Preliminary stopping activity; no range has been established")
        else if e.phase == 1
            if e.stage == 1
                // SC/BC is provisional until AR establishes the second boundary.
                if b.l < e.lo
                    e.lo := b.l
                    e.climaxBar := b.i
                    e.climaxVolume := b.volumeOk ? b.vol : na
                if not na(b.ph) and b.pivotIndex > e.climaxBar and b.ph - e.lo >= cfg.minWidth * b.atr
                    e.hi := b.ph
                    e.arBar := b.pivotIndex
                    e.stage := 2
                    e.tag("AR", "Confirmed swing establishes the other boundary; range is now frozen")
            else if e.stage == 2
                bool test = not na(b.pl) and b.pivotIndex > e.arBar and b.pl >= e.lo - tol and b.pl <= e.lo + width * 0.3 and inside
                bool comparableVolume = not na(b.pivotVolume) and b.pivotVolume > 0 and not na(e.climaxVolume) and e.climaxVolume > 0
                bool lessVolume = comparableVolume ? b.pivotVolume < e.climaxVolume : not b.volumeOk
                if test and lessVolume
                    e.phase := 2
                    e.stage := 3
                    e.bStarted := b.i
                    e.lastTest := b.i
                    e.tag("ST", b.volumeOk ? "Secondary test on lower volume; cause-building hypothesis begins" : "Price-only secondary test; volume unavailable")
        else if e.phase == 2 or e.phase == 3
            bool mature = b.i - e.bStarted >= cfg.minB
            if e.pending == 1
                e.sweepExtreme := math.min(e.sweepExtreme, b.l)
                e.sweepRv := b.volumeOk ? math.max(nz(e.sweepRv, b.rv), b.rv) : e.sweepRv
                bool tooDeep = e.lo - e.sweepExtreme > cfg.maxSweep * b.atr
                if b.i - e.sweepBar > cfg.reclaimBars or tooDeep
                    e.pending := 0
                    e.phase := 2
                    e.testPassed := false
                    e.tag("SWEEP FAILED", "Reclaim window expired or excursion exceeded the allowed depth")
                else if b.c >= e.lo and closeLocation >= 0.55
                    e.pending := 0
                    e.phase := 3
                    e.sweepKind := na(e.sweepRv) ? 0 : e.sweepRv >= 2 ? 1 : e.sweepRv >= 1 ? 2 : 3
                    e.testPassed := e.sweepKind == 3
                    e.tag(e.dir == 1 ? "SPRING" : "UTAD", b.c > e.hi ? "Recovered beyond the opposite edge; test and strength rules still apply" : e.testPassed ? "Low-volume reclaim confirmed; subsequent strength still required" : "Reclaim confirmed; waiting for a later lower-effort test")
            else if mature and b.l < e.lo - tol and b.c <= e.hi and e.lo - b.l <= cfg.maxSweep * b.atr
                e.pending := 1
                e.sweepBar := b.i
                e.sweepExtreme := b.l
                e.sweepRv := b.rv
                e.testPassed := false
                e.testObserved := false
                e.tag("SWEEP?", "Boundary breach observed; waiting for an actual close back inside")
                if inside and closeLocation >= 0.55
                    e.pending := 0
                    e.phase := 3
                    e.sweepKind := not b.volumeOk ? 0 : b.rv >= 2 ? 1 : b.rv >= 1 ? 2 : 3
                    e.testPassed := e.sweepKind == 3
                    e.tag(e.dir == 1 ? "SPRING" : "UTAD", e.testPassed ? "Same-bar low-volume reclaim confirmed; waiting for strength" : "Same-bar reclaim confirmed; later test required")
            else if e.phase == 3 and not e.testPassed
                bool higherTest = not na(b.pl) and b.pivotIndex > e.sweepBar and b.pl > e.sweepExtreme + tol and b.pl <= e.lo + width * 0.4 and inside
                bool dryTest = not na(b.pivotRv) and b.pivotRv < math.min(nz(e.sweepRv, 1), 1.15)
                bool priceOnlyTest = e.sweepKind == 0 and not b.volumeOk and na(b.pivotRv)
                if higherTest and (dryTest or priceOnlyTest)
                    e.testPassed := true
                    e.testObserved := true
                    e.lastTest := b.i
                    e.tag("TEST", priceOnlyTest ? "Structural test only; lower-effort volume evidence is unavailable" : "Confirmed higher-low / lower-high test on reduced relative volume")
            else if mature and demand and b.c > math.max(nz(e.lastSwingHigh, e.lo + width * 0.65), e.lo + width * 0.5) + tol and (e.phase == 2 or e.testPassed)
                e.phase := 4
                e.strengthBar := b.i
                e.tag(e.dir == 1 ? "SOS" : "SOW", enteredPhase == 2 ? "Directional dominance; no terminal sweep required" : "Directional dominance on expanded effort and result")
                if b.c > e.hi + tol
                    e.breakout := b.i
                    e.outside := 1
                    e.tag(e.dir == 1 ? "JAC" : "FTI", "First decisive close beyond the frozen range; acceptance is pending")
            else if e.phase == 2 and inside and b.i - e.lastTest > 5
                if not na(b.pl) and b.pivotIndex > e.bStarted and b.pl <= e.lo + width * 0.3 and b.pl >= e.lo - tol and pivotLowEffort
                    e.lastTest := b.i
                    e.tag("ST-B", "Range-edge test during cause building")
                else if b.h > e.hi + tol
                    e.lastTest := b.i
                    e.tag(e.dir == 1 ? "UTA" : "mSOW", "Opposite edge rejected back into the range; direction remains unresolved")
        else if e.phase == 4
            if na(e.breakout)
                if demand and b.c > e.hi + tol
                    e.breakout := b.i
                    e.outside := 1
                    e.tag(e.dir == 1 ? "JAC" : "FTI", "Breakout close observed; a second outside close is required")
                else if not na(b.pl) and b.pivotIndex > e.strengthBar and b.pl > nz(e.sweepExtreme, e.lo) + tol and inside and pivotLowEffort and b.i - e.lastTest > 5
                    e.lastTest := b.i
                    e.tag(e.dir == 1 ? "LPS" : "LPSY", "Confirmed pullback holds above structural origin on reduced effort")
            else
                e.outside := b.c > e.hi + tol ? e.outside + 1 : 0
                if e.outside >= 2
                    e.phase := 5
                    e.trail := math.max(e.lo, b.c - cfg.trailAtr * b.atr)
                    e.tag("ACCEPT", "Two consecutive closes accepted outside the range; awaiting backup")
                else if b.c < e.hi - tol or b.i - e.breakout > cfg.reclaimBars
                    e.breakout := na
                    e.outside := 0
                    e.phase := 2
                    e.bStarted := b.i
                    e.testPassed := false
                    e.tag("BREAKOUT FAILED", "Outside acceptance failed; cause-building hypothesis restarted")
        else if e.phase == 5
            if b.c < e.trail
                e.clearEpisode(b.i, "Confirmed close crossed the one-way structural trail")
            else if b.c < e.hi - tol
                e.clearEpisode(b.i, "Backup failed: price closed back through the breakout boundary")
            else
                e.trail := math.max(e.trail, b.c - cfg.trailAtr * b.atr)
                bool retest = b.i > e.breakout and b.l <= e.hi + tol and b.l >= e.hi - cfg.maxSweep * b.atr and b.c >= e.hi and b.c > b.o
                if retest and not e.backedUp and (not b.volumeOk or b.rv <= 1.3)
                    e.backedUp := true
                    e.tag("BU", b.volumeOk ? "Accepted breakout retested on controlled effort; one setup per episode" : "Price-only backup; volume confirmation unavailable")
        // AVWAP anchors at the observed episode start; missing volume is never invented.
        if e.phase > 0
            if b.volumeOk
                e.pvSum += (b.h + b.l + b.c) / 3 * b.vol
                e.vSum += b.vol
                e.vwap := e.pvSum / e.vSum
            if not na(b.ph) and b.pivotIndex >= e.born and b.ph < nz(e.hi, b.ph + 1)
                e.lastSwingHigh := b.ph
            float base = e.phase == 1 ? 12 : e.phase == 2 ? 25 : e.phase == 3 ? 40 : e.phase == 4 ? 55 : 65
            float support = (e.testPassed ? 8 : 0) + (b.contraction ? 5 : 0) + (not na(e.vwap) and b.c > e.vwap ? 5 : 0) + (b.context == 1 ? 7 : b.context == -1 ? -8 : 0) + (closeLocation >= 0.65 ? 5 : 0) + (not na(b.delta) and b.delta > 0.1 ? 5 : 0)
            e.score := math.max(0, math.min(100, base + support - (e.bootstrap ? 5 : 0) - (b.volumeOk ? 0 : 15) - (e.pending == 1 ? 8 : 0)))
    e.phase

const string G_ENGINE = "01 · Detection"
int swingBars = input.int(3, "Confirmed swing bars (latency)", minval = 2, maxval = 10, group = G_ENGINE)
int baseline = input.int(50, "Adaptive baseline", minval = 20, maxval = 200, group = G_ENGINE)
int rangeBars = input.int(30, "Balanced-range lookback", minval = 15, maxval = 100, group = G_ENGINE)
bool allowBootstrap = input.bool(true, "Allow balanced-range bootstrap", tooltip = "Recognizes continuation ranges without inventing historical SC/BC. Both directions may remain plausible.", group = G_ENGINE)
int minCause = input.int(8, "Minimum cause-building bars", minval = 3, maxval = 80, group = G_ENGINE)
int reclaimWindow = input.int(3, "Reclaim deadline (closed bars)", minval = 1, maxval = 5, group = G_ENGINE)
int maxAge = input.int(240, "Expire range after bars", minval = 40, maxval = 1500, group = G_ENGINE)
float tolerance = input.float(0.25, "Boundary tolerance / ATR", minval = 0.05, maxval = 1, step = 0.05, group = G_ENGINE)
float maxSweep = input.float(1.5, "Maximum sweep depth / ATR", minval = 0.5, maxval = 4, step = 0.1, group = G_ENGINE)
float minWidth = input.float(2.5, "Minimum range width / ATR", minval = 1, maxval = 8, step = 0.25, group = G_ENGINE)
float trailMultiple = input.float(3, "One-way trail / ATR", minval = 1, maxval = 8, step = 0.25, group = G_ENGINE)
const string G_CONTEXT = "02 · Evidence and setup gates"
bool useContext = input.bool(true, "Use confirmed higher-timeframe context", group = G_CONTEXT)
string contextInput = input.timeframe("", "Context timeframe (blank = automatic 4×)", group = G_CONTEXT)
bool requireVolume = input.bool(true, "Require volume for qualified backup", tooltip = "Price-only hypotheses remain visible. Missing/zero volume cannot qualify a setup when enabled.", group = G_CONTEXT)
float minEvidence = input.float(65, "Minimum backup evidence score", minval = 40, maxval = 95, group = G_CONTEXT)
float leadNeeded = input.float(10, "Minimum lead over opposing hypothesis", minval = 0, maxval = 40, group = G_CONTEXT)
bool enableJson = input.bool(false, "Emit JSON event alerts", group = G_CONTEXT)

float atr = ta.atr(14)
float volMedian = ta.median(volume, baseline)[1]
bool hasVolume = not na(volume) and volume > 0 and not na(volMedian) and volMedian > 0
float rvol = hasVolume ? volume / volMedian : na
float spread = high - low
float spreadMedian = ta.median(spread, baseline)[1]
float spreadRatio = spreadMedian > 0 ? spread / spreadMedian : 0
float volumeExtreme = ta.percentile_nearest_rank(volume, baseline, 90)[1]
float spreadExtreme = ta.percentile_nearest_rank(spread, baseline, 90)[1]
float ph = ta.pivothigh(high, swingBars, swingBars)
float pl = ta.pivotlow(low, swingBars, swingBars)
float recentHi = ta.highest(high, rangeBars)[1]
float recentLo = ta.lowest(low, rangeBars)[1]
float pathLength = math.sum(math.abs(ta.change(close)), rangeBars)[1]
float efficiency = pathLength > 0 ? math.abs(close[1] - close[rangeBars + 1]) / pathLength : 1
float fastVolume = ta.sma(volume, 8)
float slowVolume = ta.sma(volume, 30)
bool contraction = hasVolume and fastVolume < slowVolume * 0.9
float trend = ta.ema(close, 34)
bool priorDown = close[1] < trend[1] and trend[1] < trend[6]
bool priorUp = close[1] > trend[1] and trend[1] > trend[6]
bool quiet = efficiency < 0.3 and recentHi - recentLo <= atr * 10
bool extreme = hasVolume and volume >= volumeExtreme and rvol >= 1.8 and spread >= spreadExtreme and spreadRatio >= 1.3
float closeLocation = spread > 0 ? (close - low) / spread : 0.5
bool warm = bar_index > math.max(baseline, rangeBars) + 35 and not na(atr)
string contextTf = contextInput == "" ? timeframe.from_seconds(int(timeframe.in_seconds() * 4)) : contextInput
if barstate.isfirst and not chart.is_standard
    runtime.error("Use standard time-based candles. Synthetic prices are unsuitable for this analysis.")
if barstate.isfirst and useContext and timeframe.in_seconds(contextTf) <= timeframe.in_seconds()
    runtime.error("Context timeframe must be higher than the chart timeframe.")
[htfClose, htfMean, htfOldMean] = request.security(syminfo.tickerid, contextTf, [close[1], ta.ema(close, 34)[1], ta.ema(close, 34)[2]], lookahead = barmerge.lookahead_on)
int htfBias = not useContext ? 0 : htfClose > htfMean and htfMean > htfOldMean ? 1 : htfClose < htfMean and htfMean < htfOldMean ? -1 : 0

f_frame(int direction) =>
    WBar b = WBar.new()
    b.i := bar_index
    b.closed := barstate.isconfirmed and warm
    b.o := direction * open
    b.h := direction == 1 ? high : -low
    b.l := direction == 1 ? low : -high
    b.c := direction * close
    b.atr := atr
    b.rv := rvol
    b.vol := volume
    b.volumeOk := hasVolume
    b.climax := extreme and (direction == 1 ? priorDown and low < recentLo and closeLocation >= 0.4 : priorUp and high > recentHi and closeLocation <= 0.6)
    b.quiet := quiet
    b.rangeLo := direction == 1 ? recentLo : -recentHi
    b.rangeHi := direction == 1 ? recentHi : -recentLo
    b.ph := direction == 1 ? ph : -pl
    b.pl := direction == 1 ? pl : -ph
    b.pivotVolume := volume[swingBars]
    b.pivotRv := rvol[swingBars]
    b.pivotIndex := bar_index - swingBars
    b.spreadRatio := spreadRatio
    b.contraction := contraction
    b.context := direction * htfBias
    b.delta := direction * fpDelta
    b

var WEngine bull = WEngine.new(1)
var WEngine bear = WEngine.new(-1)
WConfig config = WConfig.new(minCause, reclaimWindow, maxAge, tolerance, maxSweep, minWidth, trailMultiple, allowBootstrap)
bull.step(f_frame(1), config)
bear.step(f_frame(-1), config)
bool eligibleLong = barstate.isconfirmed and warm and bull.event == "BU" and bull.score >= minEvidence and bull.score - bear.score >= leadNeeded and (not requireVolume or hasVolume) and (not useContext or htfBias >= 0)
bool eligibleShort = barstate.isconfirmed and warm and bear.event == "BU" and bear.score >= minEvidence and bear.score - bull.score >= leadNeeded and (not requireVolume or hasVolume) and (not useContext or htfBias <= 0)
alertcondition(eligibleLong, "Qualified bullish backup", "Wyckoff Evidence Desk: qualified bullish backup on {{ticker}} {{interval}}. Evidence is not a probability.")
alertcondition(eligibleShort, "Qualified bearish backup", "Wyckoff Evidence Desk: qualified bearish backup on {{ticker}} {{interval}}. Evidence is not a probability.")
alertcondition(barstate.isconfirmed and (bull.event == "SPRING" or bear.event == "UTAD"), "Confirmed reclaim", "Wyckoff boundary reclaim confirmed on {{ticker}} {{interval}}; inspect test and acceptance status.")
if enableJson and barstate.isconfirmed
    for side in array.from(bull, bear)
        if side.event != ""
            string payload = '{"schema":"wed.v1","symbol":"' + syminfo.tickerid + '","timeframe":"' + timeframe.period + '","barTime":' + str.tostring(time) + ',"side":' + str.tostring(side.dir) + ',"phase":' + str.tostring(side.phase) + ',"event":"' + side.event + '","evidence":' + str.tostring(side.score, "#.0") + ',"volumeAvailable":' + str.tostring(hasVolume) + '}'
            alert(payload, alert.freq_all)
// Numeric exports for Data Window and Pine Screener. Scores are uncalibrated rules.
plot(bull.phase, "Accumulation phase 0-5", display = display.data_window)
plot(bear.phase, "Distribution phase 0-5", display = display.data_window)
plot(bull.score, "Accumulation evidence 0-100", display = display.data_window)
plot(bear.score, "Distribution evidence 0-100", display = display.data_window)
plot(eligibleLong ? 1 : eligibleShort ? -1 : 0, "Qualified backup direction", display = display.data_window)

const string G_LAB = "04 · Validation Lab"
int startDate = input.time(timestamp("01 Jan 2024 00:00 +0000"), "Test start", group = G_LAB)
int endDate = input.time(timestamp("01 Jan 2030 00:00 +0000"), "Test end", group = G_LAB)
float orderQty = input.float(1, "Fixed contracts / units", minval = 0.000001, group = G_LAB)
float targetR = input.float(2, "Target / signal-planned risk", minval = 0.5, step = 0.25, tooltip = "Bracket is fixed at signal close and active with the next-open entry. Gaps and slippage change the realized entry risk/reward.", group = G_LAB)
int maxHold = input.int(100, "Maximum holding bars", minval = 5, maxval = 1000, group = G_LAB)
var float labStop = na
var float labTarget = na
var int labEntryBar = na
bool testWindow = time >= startDate and time <= endDate
if barstate.isconfirmed
    if strategy.position_size == 0 and strategy.position_size[1] != 0
        labStop := na
        labTarget := na
        labEntryBar := na
    if testWindow and strategy.position_size == 0
        if eligibleLong and not eligibleShort
            labStop := math.min(low - atr * tolerance, close - atr)
            labTarget := close + (close - labStop) * targetR
            labEntryBar := bar_index
            strategy.entry("Long BU", strategy.long, qty = orderQty)
            strategy.exit("Long bracket", "Long BU", stop = labStop, limit = labTarget)
        else if eligibleShort and not eligibleLong
            labStop := math.max(high + atr * tolerance, close + atr)
            labTarget := close - (labStop - close) * targetR
            labEntryBar := bar_index
            strategy.entry("Short BU", strategy.short, qty = orderQty)
            strategy.exit("Short bracket", "Short BU", stop = labStop, limit = labTarget)
    if strategy.position_size > 0
        strategy.exit("Long bracket", "Long BU", stop = labStop, limit = labTarget)
    if strategy.position_size < 0
        strategy.exit("Short bracket", "Short BU", stop = labStop, limit = labTarget)
    if strategy.position_size != 0 and (not testWindow or bar_index - strategy.opentrades.entry_bar_index(0) >= maxHold)
        strategy.close_all(comment = "Time exit")
plot(strategy.position_size != 0 ? labStop : na, "Lab frozen stop", color = #ff7d78, style = plot.style_linebr)
plot(strategy.position_size != 0 ? labTarget : na, "Lab frozen target", color = #51d9be, style = plot.style_linebr)

// ── Evidence desk · chart presentation ────────────────────────────────────────
string visualGroup = "05 · Evidence desk"
bool showDashboard = input.bool(true, "Evidence dashboard", group = visualGroup)
bool showTape = input.bool(true, "Last six confirmed events", group = visualGroup)
bool showLabels = input.bool(true, "Confirmed event labels", group = visualGroup)
bool showRange = input.bool(true, "Active hypothesis ranges", group = visualGroup)
bool showVwap = input.bool(true, "Event-anchored VWAP", group = visualGroup)
bool showTrail = input.bool(true, "Phase E structural trail", group = visualGroup)
bool showBars = input.bool(false, "Color bars from phase C onward", group = visualGroup)
int maxEventLabels = input.int(60, "Retained event labels", minval = 10, maxval = 100, group = visualGroup)
string dashboardPosition = input.string("Top right", "Dashboard position", options = ["Top right", "Bottom right", "Top left", "Bottom left"], group = visualGroup)

color vdInk = #0B151C
color vdPanel = #101F29
color vdGrid = #223642
color vdText = #DCE9ED
color vdMuted = #819AA5
color vdBull = #44D9C0
color vdBear = #FF8177
color vdGold = #EDC778

f_vdPhase(int phase) =>
    switch phase
        1 => "A · stopping action"
        2 => "B · range building"
        3 => "C · test / sweep"
        4 => "D · directional proof"
        5 => "E · follow-through"
        => "SCAN · no range"

f_vdRibbon(int phase) =>
    phase == 0 ? "SCAN   ·   WAIT FOR STRUCTURE" : (phase == 1 ? "[A]" : " A ") + " — " + (phase == 2 ? "[B]" : " B ") + " — " + (phase == 3 ? "[C]" : " C ") + " — " + (phase == 4 ? "[D]" : " D ") + " — " + (phase == 5 ? "[E]" : " E ")

f_vdFailed(string eventName) =>
    str.contains(str.upper(eventName), "FAIL") or str.contains(str.upper(eventName), "INVALID") or str.contains(str.upper(eventName), "EXPIRE")

f_vdPrice(float value) =>
    na(value) ? "—" : str.tostring(value, format.mintick)

f_vdScore(float value) =>
    float bounded = math.max(0.0, math.min(100.0, nz(value)))
    int blocks = int(math.round(bounded / 20.0))
    string meter = ""
    for block = 1 to 5
        meter += block <= blocks ? "■" : "·"
    str.tostring(bounded, "0") + " / 100  " + meter

f_vdBrief(string value, int limit) =>
    str.length(value) > limit ? str.substring(value, 0, limit - 1) + "…" : value

f_vdTest(WEngine engine) =>
    engine.phase == 0 ? "Awaiting range" : engine.pending == 1 ? "Reclaim pending" : engine.testPassed and engine.testObserved ? "Test confirmed" : engine.testPassed ? "Type 3 · test waived" : engine.phase >= 4 ? "Direct strength path" : "No confirmed test"

f_vdBoundaryTip(WEngine engine, bool isBull) =>
    float direction = isBull ? 1.0 : -1.0
    string side = isBull ? "below " : "above "
    string detail = "No active range."
    if engine.phase > 0 and na(engine.hi)
        detail := "Phase A candidate: awaiting the automatic reaction to establish both range edges. Observed origin: " + f_vdPrice(direction * engine.lo)
    else if engine.phase > 0
        detail := "Sustained close invalidation: " + side + f_vdPrice(direction * (engine.lo - atr * tolerance)) + ". More than " + str.tostring(reclaimWindow) + " consecutive closes are required.\nMaximum adverse wick boundary: " + f_vdPrice(direction * (engine.lo - atr * maxSweep)) + ". Crossing it invalidates on the confirmed bar."
        if engine.phase == 5
            detail += "\nPhase E structural trail: " + f_vdPrice(direction * engine.trail) + ".\nBackup failure close boundary: " + side + f_vdPrice(direction * (engine.hi - atr * tolerance)) + ".\nTrail is structural context, not a broker stop order."
    detail

f_vdCell(table panel, int column, int row, string value, color foreground, color background, string tooltipText = "") =>
    table.cell(panel, column, row, value, text_color = foreground, bgcolor = background, text_size = size.small, text_halign = column == 0 ? text.align_left : text.align_center, tooltip = tooltipText)

f_vdTape(array<string> tape, array<color> colors, bool isBull, string eventName, string reason) =>
    string stamp = str.format_time(na(time_close) ? time : time_close, "dd MMM HH:mm", syminfo.timezone)
    array.unshift(tape, stamp + "  ·  " + (isBull ? "ACC" : "DIST") + "  " + eventName + "  ·  " + f_vdBrief(reason, 28))
    array.unshift(colors, f_vdFailed(eventName) ? vdGold : isBull ? vdBull : vdBear)
    if array.size(tape) > 6
        array.pop(tape)
        array.pop(colors)

f_vdLabel(bool isBull, WEngine engine) =>
    color tone = f_vdFailed(engine.event) ? vdGold : isBull ? vdBull : vdBear
    float y = isBull ? low - nz(atr, high - low) * 0.24 : high + nz(atr, high - low) * 0.24
    string tip = (isBull ? "ACCUMULATION" : "DISTRIBUTION") + " · " + engine.event + "\nConfirmed on this bar close.\n" + f_vdPhase(engine.phase) + "\nEvidence: " + str.tostring(engine.score, "0") + " / 100 (heuristic, not probability)\n" + engine.why
    label.new(bar_index, y, engine.event, xloc = xloc.bar_index, yloc = yloc.price, style = isBull ? label.style_label_up : label.style_label_down, color = color.new(tone, 12), textcolor = vdInk, size = size.tiny, tooltip = tip)

bool vdBullActive = bull.phase > 0
bool vdBearActive = bear.phase > 0
bool vdBullRange = vdBullActive and not na(bull.lo) and not na(bull.hi)
bool vdBearRange = vdBearActive and not na(bear.lo) and not na(bear.hi)
bool vdContested = vdBullActive and vdBearActive and math.abs(bull.score - bear.score) <= 10.0
bool vdSelectBull = vdBullActive and (not vdBearActive or bull.score >= bear.score)
bool vdSelectBear = vdBearActive and not vdSelectBull
bool vdShowBull = vdBullActive and (vdSelectBull or vdContested)
bool vdShowBear = vdBearActive and (vdSelectBear or vdContested)
bool vdDrawBull = vdBullRange and vdShowBull
bool vdDrawBear = vdBearRange and vdShowBear
int vdPhase = vdSelectBull ? bull.phase : vdSelectBear ? bear.phase : 0
color vdAccent = vdContested ? vdGold : vdSelectBull ? vdBull : vdSelectBear ? vdBear : vdMuted
bool vdReset = not vdBullActive and not vdBearActive and (f_vdFailed(bull.lastEvent) or f_vdFailed(bear.lastEvent))
string vdMode = vdContested ? "CONTESTED · BOTH HYPOTHESES ACTIVE" : vdSelectBull ? "ACCUMULATION · LEADING EVIDENCE" : vdSelectBear ? "DISTRIBUTION · LEADING EVIDENCE" : vdReset ? "RESET → SCAN · AWAIT NEW STRUCTURE" : "SCANNING · AWAIT STOPPING ACTION"

// Reuse two boxes. Their left edge is the confirmation bar that started the range.
var box vdBullBox = na
var box vdBearBox = na
if showRange and vdDrawBull
    int left = math.max(nz(bull.born, bar_index), bar_index - 9999)
    if na(vdBullBox)
        vdBullBox := box.new(left, bull.hi, bar_index + 1, bull.lo, border_color = color.new(vdBull, 26), border_width = 1, bgcolor = color.new(vdBull, 94), text = "", text_color = color.new(vdBull, 12), text_size = size.tiny, text_halign = text.align_left, text_valign = text.align_top)
    box.set_lefttop(vdBullBox, left, bull.hi)
    box.set_rightbottom(vdBullBox, bar_index + 1, bull.lo)
    box.set_border_style(vdBullBox, vdContested ? line.style_dashed : line.style_solid)
    box.set_text(vdBullBox, "  ACC  ·  " + f_vdPhase(bull.phase) + "  ·  " + str.tostring(bull.score, "0") + "/100")
else if not na(vdBullBox)
    box.delete(vdBullBox)
    vdBullBox := na

if showRange and vdDrawBear
    int left = math.max(nz(bear.born, bar_index), bar_index - 9999)
    if na(vdBearBox)
        vdBearBox := box.new(left, -bear.lo, bar_index + 1, -bear.hi, border_color = color.new(vdBear, 26), border_width = 1, bgcolor = color.new(vdBear, 94), text = "", text_color = color.new(vdBear, 12), text_size = size.tiny, text_halign = text.align_left, text_valign = text.align_bottom)
    box.set_lefttop(vdBearBox, left, -bear.lo)
    box.set_rightbottom(vdBearBox, bar_index + 1, -bear.hi)
    box.set_border_style(vdBearBox, vdContested ? line.style_dashed : line.style_solid)
    box.set_text(vdBearBox, "  DIST  ·  " + f_vdPhase(bear.phase) + "  ·  " + str.tostring(bear.score, "0") + "/100")
else if not na(vdBearBox)
    box.delete(vdBearBox)
    vdBearBox := na

plot(showVwap and vdShowBull ? bull.vwap : na, "Accumulation event AVWAP", color = vdBull, linewidth = 2, style = plot.style_linebr)
plot(showVwap and vdShowBear ? -bear.vwap : na, "Distribution event AVWAP", color = vdBear, linewidth = 2, style = plot.style_linebr)
float vdSelectedTrail = not vdContested and vdPhase == 5 ? vdSelectBull ? bull.trail : -bear.trail : na
plot(showTrail ? vdSelectedTrail : na, "Leading Phase E structural trail", color = vdGold, linewidth = 1, style = plot.style_linebr)
barcolor(showBars and vdPhase >= 3 ? color.new(vdAccent, 24) : na, title = "Evidence phase tint")
plotshape(eligibleLong and barstate.isconfirmed, title = "Confirmed long setup", style = shape.diamond, location = location.belowbar, color = vdBull, size = size.tiny)
plotshape(eligibleShort and barstate.isconfirmed, title = "Confirmed short setup", style = shape.diamond, location = location.abovebar, color = vdBear, size = size.tiny)

var array<label> vdLabels = array.new<label>()
var array<string> vdTape = array.new<string>()
var array<color> vdTapeColors = array.new<color>()
if barstate.isconfirmed
    if bull.event != ""
        f_vdTape(vdTape, vdTapeColors, true, bull.event, bull.why)
        if showLabels
            array.push(vdLabels, f_vdLabel(true, bull))
    if bear.event != ""
        f_vdTape(vdTape, vdTapeColors, false, bear.event, bear.why)
        if showLabels
            array.push(vdLabels, f_vdLabel(false, bear))
    while array.size(vdLabels) > maxEventLabels
        label.delete(array.shift(vdLabels))

string vdPosition = switch dashboardPosition
    "Bottom right" => position.bottom_right
    "Top left" => position.top_left
    "Bottom left" => position.bottom_left
    => position.top_right
var table vdDesk = table.new(vdPosition, 3, 21, bgcolor = vdInk, frame_color = vdGrid, frame_width = 1, border_color = vdInk, border_width = 1)
if barstate.isfirst
    table.merge_cells(vdDesk, 0, 0, 2, 0)
    table.merge_cells(vdDesk, 0, 1, 2, 1)
    table.merge_cells(vdDesk, 0, 2, 2, 2)
    table.merge_cells(vdDesk, 0, 13, 2, 13)
    table.merge_cells(vdDesk, 0, 14, 2, 14)
    for row = 15 to 20
        table.merge_cells(vdDesk, 0, row, 2, row)

if barstate.islast or barstate.islastconfirmedhistory
    if showDashboard
        f_vdCell(vdDesk, 0, 0, "WYCKOFF  /  EVIDENCE DESK", vdText, vdPanel, "Two independent, sequential hypotheses. Evidence scores are rule-based support, not calibrated probabilities.")
        f_vdCell(vdDesk, 0, 1, vdMode, vdAccent, color.new(vdAccent, 91))
        f_vdCell(vdDesk, 0, 2, vdContested ? "TWO ACTIVE PATHS · NO SINGLE PHASE RIBBON" : f_vdRibbon(vdPhase), vdAccent, vdInk)
        f_vdCell(vdDesk, 0, 3, "HYPOTHESIS", vdMuted, vdPanel)
        f_vdCell(vdDesk, 1, 3, "ACCUMULATION", vdBull, vdPanel)
        f_vdCell(vdDesk, 2, 3, "DISTRIBUTION", vdBear, vdPanel)
        f_vdCell(vdDesk, 0, 4, "Phase", vdMuted, vdInk)
        f_vdCell(vdDesk, 1, 4, f_vdPhase(bull.phase), vdBullActive ? vdBull : vdMuted, vdInk)
        f_vdCell(vdDesk, 2, 4, f_vdPhase(bear.phase), vdBearActive ? vdBear : vdMuted, vdInk)
        f_vdCell(vdDesk, 0, 5, "Evidence", vdMuted, vdPanel, "Heuristic support from the configured rules; 80/100 does not mean an 80% chance of success.")
        f_vdCell(vdDesk, 1, 5, f_vdScore(bull.score), vdBull, vdPanel)
        f_vdCell(vdDesk, 2, 5, f_vdScore(bear.score), vdBear, vdPanel)
        f_vdCell(vdDesk, 0, 6, "Range / limits ⓘ", vdMuted, vdInk, "Hover either hypothesis for its invalidation boundaries and, in Phase E, its structural trail. Live ATR-based boundaries can move until bar close.")
        f_vdCell(vdDesk, 1, 6, vdBullRange ? f_vdPrice(bull.lo) + " – " + f_vdPrice(bull.hi) : vdBullActive ? "Awaiting AR" : "—", vdText, vdInk, f_vdBoundaryTip(bull, true))
        f_vdCell(vdDesk, 2, 6, vdBearRange ? f_vdPrice(-bear.hi) + " – " + f_vdPrice(-bear.lo) : vdBearActive ? "Awaiting AR" : "—", vdText, vdInk, f_vdBoundaryTip(bear, false))
        f_vdCell(vdDesk, 0, 7, "Test", vdMuted, vdPanel)
        f_vdCell(vdDesk, 1, 7, f_vdTest(bull), bull.pending == 1 ? vdGold : vdText, vdPanel)
        f_vdCell(vdDesk, 2, 7, f_vdTest(bear), bear.pending == 1 ? vdGold : vdText, vdPanel)
        f_vdCell(vdDesk, 0, 8, "Latest event", vdMuted, vdInk)
        f_vdCell(vdDesk, 1, 8, bull.lastEvent == "" ? "—" : bull.lastEvent, f_vdFailed(bull.lastEvent) ? vdGold : vdBull, vdInk)
        f_vdCell(vdDesk, 2, 8, bear.lastEvent == "" ? "—" : bear.lastEvent, f_vdFailed(bear.lastEvent) ? vdGold : vdBear, vdInk)
        string contextName = not useContext ? "OFF" : htfBias == 1 ? "BULLISH" : htfBias == -1 ? "BEARISH" : "NEUTRAL"
        f_vdCell(vdDesk, 0, 9, "Context · " + contextTf, vdMuted, vdPanel, "Context is read from confirmed higher-timeframe data.")
        f_vdCell(vdDesk, 1, 9, contextName, not useContext ? vdMuted : htfBias == 1 ? vdBull : htfBias == -1 ? vdBear : vdGold, vdPanel)
        f_vdCell(vdDesk, 2, 9, useContext ? "CLOSED HTF" : "FILTER OFF", vdMuted, vdPanel)
        f_vdCell(vdDesk, 0, 10, "Volume / flow", vdMuted, vdInk)
        f_vdCell(vdDesk, 1, 10, hasVolume ? "RVOL  " + str.tostring(rvol, "0.00") + "×" : "VOLUME UNAVAILABLE", hasVolume ? vdText : vdGold, vdInk)
        f_vdCell(vdDesk, 2, 10, footprintBuild ? na(fpDelta) ? "FOOTPRINT N/A" : "Δ VOL  " + (fpDelta > 0 ? "+" : "") + str.tostring(fpDelta * 100.0, "0.0") + "%" : "OHLCV", footprintBuild and na(fpDelta) ? vdGold : vdMuted, vdInk, "Footprint delta divided by total classified volume. +25.0% means a +0.25 ratio, not 25 contracts or a probability.")
        f_vdCell(vdDesk, 0, 11, "Confirmed setup", vdMuted, vdPanel, "This row is true only on a confirmed eligible setup event. It is not a standing instruction or a profitability estimate.")
        f_vdCell(vdDesk, 1, 11, eligibleLong and barstate.isconfirmed ? "LONG · NEW EVENT" : "WAIT", eligibleLong and barstate.isconfirmed ? vdBull : vdMuted, vdPanel)
        f_vdCell(vdDesk, 2, 11, eligibleShort and barstate.isconfirmed ? "SHORT · NEW EVENT" : "WAIT", eligibleShort and barstate.isconfirmed ? vdBear : vdMuted, vdPanel)
        f_vdCell(vdDesk, 0, 12, "Evidence note", vdMuted, vdInk)
        f_vdCell(vdDesk, 1, 12, f_vdBrief(bull.why, 26), vdMuted, vdInk, bull.why)
        f_vdCell(vdDesk, 2, 12, f_vdBrief(bear.why, 26), vdMuted, vdInk, bear.why)
        f_vdCell(vdDesk, 0, 13, barstate.isconfirmed ? "BAR CLOSED  ·  SCORE ≠ PROBABILITY" : "LIVE BAR  ·  EVENTS WAIT FOR CLOSE", barstate.isconfirmed ? vdMuted : vdGold, vdPanel)
        f_vdCell(vdDesk, 0, 14, showTape ? "EVENT TAPE  ·  NEWEST FIRST  ·  EXCHANGE TIME" : "", vdMuted, showTape ? vdPanel : color.new(vdInk, 100))
        for index = 0 to 5
            bool hasEntry = showTape and index < array.size(vdTape)
            string entry = hasEntry ? array.get(vdTape, index) : showTape and index == 0 ? "No confirmed events in loaded history." : ""
            color entryColor = hasEntry ? array.get(vdTapeColors, index) : vdMuted
            f_vdCell(vdDesk, 0, 15 + index, entry, entryColor, showTape ? index % 2 == 0 ? vdInk : vdPanel : color.new(vdInk, 100))
    else
        table.clear(vdDesk, 0, 0, 2, 20)
